Mondraker
Mondraker 2022 FOXY CARBON R - CHERRY RED CARBON
Tax included.
Pickup currently unavailable at "Biked" Palm Cove
Mondraker Sale.

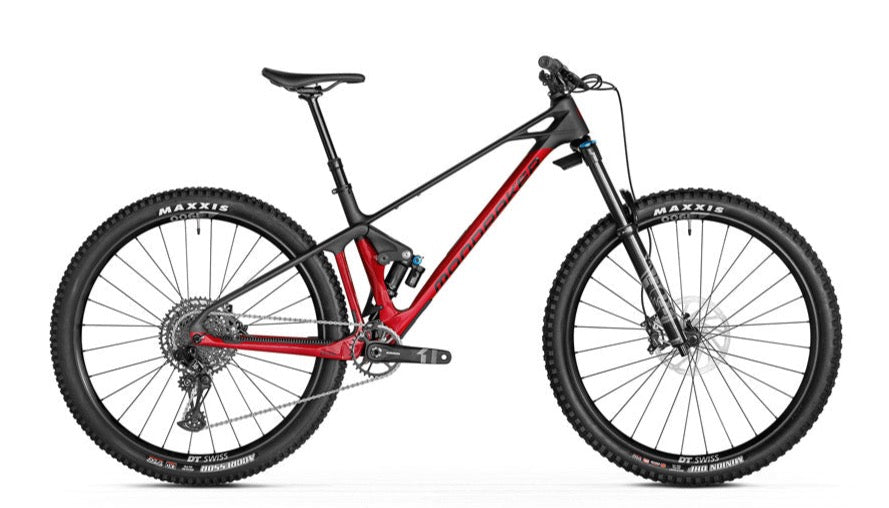

2022 Mondraker Foxy Carbon R.
The best looking enduro MTB bike available with performance to boot.
Specs;
| 01. FRAME | Foxy 29 Stealth Air full Carbon, Zero Suspension System |
| 02. SIZES | S: 380mm / M: 420mm / L: 450mm / XL: 500mm |
| 03. REAR SHOCK | Fox Float-X LV EVOL Performance, 205x65mm. Settings: compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| 04. SHOCK SETTINGS | Light compression, extralight rebound, air volume spacer 0.6 |
| 05. FORK | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| 06. HEADSET | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| 07. STEM | Onoff Sulfur FG 30mm 0 degrees, 6061 forged alloy, 31.8mm barbore |
| 08. HANDLEBAR | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degrees backsweep, 5 degrees upsweep, 31.8mm barbore |
| 09. GRIPS | Onoff Diamond, 1lock-on, 135mm |
| 10. SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm |
| 11. SADDLE | SDG BEL-AIR 3.0, LPU foam, steel rails |
| 12. FRONT BRAKE | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 13. REAR BRAKE | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 14. BRAKE LEVER | Sram G2 R, tool-free reach adjust |
| 15. RIMS | DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| 16. SPOKES | DT Champion, straightpull |
| 17. FRONT HUB | DT 370, Boost 15x110mm, IS 6 bolts |
| 18. REAR HUB | DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts |
| 19. FRONT TYRE | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| 20. REAR TYRE | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| 21. CRANKSET | Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| 22. CHAINRING | 32T, steel, X-Sync 2 |
| 23. BOTTOM BRACKET | Sram DUB BSA, sealed bearings, 73mm |
| 24. PEDALS | - |
| 25. CHAIN | Sram NX Eagle, 12s, Powerlock |
| 26. FRONT DERAILLEUR | - |
| 27. REAR DERAILLEUR | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| 28. SHIFT LEVERS | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| 29. CASSETTE | Sram XG-1230, 11-50T, 12s |
